DCE/5204AV-NRD/K
4-Port ADSL2+/ VDSL2 Combo Wireless 802.11n Gateway

Ultra-high Data Rate at Up to 100Mbps
With up to 100Mbps* for downstream and upstream bandwidths, the DCE 5204AV-NRD/K offers higher data transfer rates and provides higher bandwidth than traditional ADSL gateways. A higher bandwidth allows small to medium business users to enjoy quality symmetric and asymmetric applications and home users can enjoy smooth media-rich entertainment which was previously unavailable.

Advanced QoS for Triple Play Services
The inherent advanced QoS features of VDSL2 makes the DCE 5204AV-NRD/K an ideal access modem for service providers to deliver "triple play" multimedia services such as high-quality digital video streams, high-speed Internet access, and voice services which are competitive to the services provided by cable and satellite operators. Besides, with the Triple Play QoS, end users can enjoy the video-on-demand, on-line gaming, and E-learning with high-quality performance in the household.

Operate Over Existing Copper Wires
Telecom carriers can generate revenues by offering bundled services to successfully compete with what cable operators have to offer. A single network can be maintained to provide complete DSL services with minimal installation time and expense.

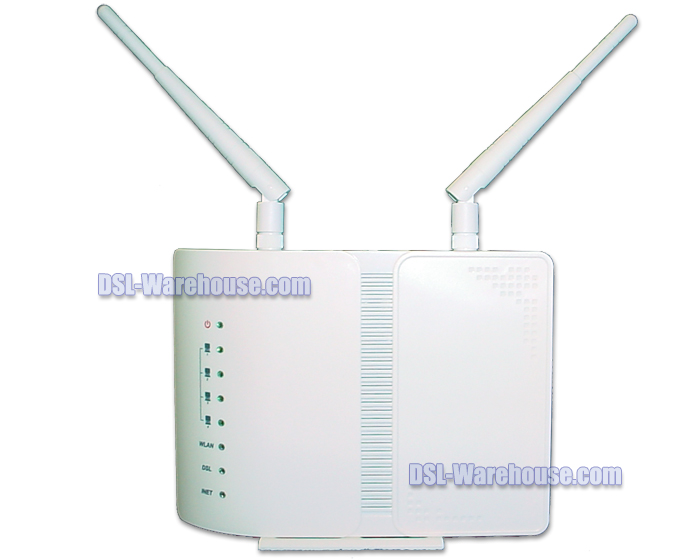

The DCE 5204AV-NRD/K sleek design occupies very little space. It can stand vertical using the included pedestal (image at the top of this page), lay flat or be wall mounted.

Connections view of the DCE 5204AV-NRD/K

DCE 5204AV-NRD/K WiFi, WPS and Reset Buttons

Download the DCE 5204AV-NRD/K Users Manual (File Size 1.19 Mb)

Full-rate ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt), supporting Annex A or B
ITU-T G.992.2 (G.lite), supporting Annex A or B
ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M
ITU-T G.992.4 (G.lite.bis), supporting Annex A or B
ITU-T G.992.5 (ADSL2+), supporting Annex A or B, Annex L and Annex M
ITU-T G.993.1 VDSL
ITU-T G.993.2 VDSL2 (Profile 8a, 8b, 8c, 8d, 12a, 12b and 17a support)
Supports Band Plan 997, 998 and 3/4/5/6 band
Data Transmission Rates:
            - Upstream: Up to 50 Mbps
            - Downstream: Up to 100 Mbps
Rate Adaptive at 32 Kbps steps
Interoperable with all major DSLAM s

• RFC2684 Bridge and Routed LLC& VC
• RFC2364 PPP over ATM ALL5
• RFC2516 PPP over Ethernet
• RFC2225/RFC1577 Classical IP over ATM
• RFC1483 Transparent Bridge
• RFC1483/2684 Bridged Ethernet
• ATM Forum UNI 3.1/4.0, ATM Adaption Layer Type 5-AAL5
• VPI Range (0-255) and VCI range (32-65535)
• F4/F5 OAM Loopback
• ATM Layer with Traffic shaping (UBR/CBR/VBR-rt/VBR-nrt)
• Supports Multiple PVC up to 16
• AIS and RDI OAM cells

• Static IP, Dynamic RIPv1, RIPv2 support
• MTU Adjustment
• Network Address Translation (NAT)
• PVC Port Mapping / Forwarding
• NAT Application Level Gateway for popular applications
• DHCP Server/Relay/client
• DNS Relay Agent
• DDNS support
• DMZ support
• SNMP V1/ V2 support
• UPnP (Universal Plug and Play)
• TR069 CWMP
• PPP Auto Reconnect and configurable timeouts
• PPP Auto Reconnect on WAN Access/PPP on Demand
• IGMP V1/V2 Snooping and IGMP Multicast Support
• ALG for SIP and H.323

• Web Based GUI

• Upgrade or update via FTP/HTTP

• Command Line Interface via serial interface or Telnet

• Diagnostic Tests

• Firmware upgrade-able for future feature enhancement

• Supports Remote Access Control

• PAP/CHAP Authentication for PPP mode

• NAT for basic Firewall support

• Stateful Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection

• ALG (Application-level gateway) for NAT/PAT support

• 2 Level (User/Admin) Password Authentication to Router

• IP Filtering and MAC Filtering

• Parental Controls

• IPSec/PPTP/L2TP Pass-through

• Classification Rules

• Priority Queuing

• 802.1p

• Windows 98 / 98 SE, 2000, ME, XP, NT, Vista, 7

• Macintosh

• Linux

• 1 DSL Line Port (RJ11)

•  4 100BASE-TX LAN Ports (RJ45) (MDI/MDIX)

• PWR,LAN1,LAN2,LAN3,LAN4,WLAN,DSL,INET

• Operating Temperature: 32°F~10°F (0°C~40°C)

• Storage Temperature: -22°F~140°F (-30°C~60)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
