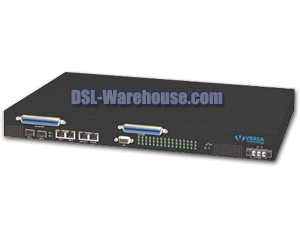

Versatek VX-1000MDz 24 Port ADSL2+ Mini IP DSLAM

$1,099.00

Versatek VX-1000MDz 24 Port ADSL2+ Mini IP DSLAM

Product Details and Add-On Options

Product name: Versatek VX-1000MDz 24 Port ADSL2+ Mini IP DSLAM

Click to View Product Datasheet (PDF)

Model: VTV/VX1000MDZ

Price: $1,099.00

Availability: 1

Product description

Versatek VX-1000MDz 24 Port ADSL2+ Mini IP DSLAM with Built-in Splitter

The VX-1000MDz Series is an advanced IP based DSLAM that can be used by service providers interested to offer broadband multi-service features. It enables high bandwidth, high quality data and voice transmission for applications such as multimedia and video streaming, interactive paid TV channels, online gaming, video conferencing, telecommunication, VoIP and distance learning, etc.

VX-1000MDz 24 Ports ADSL2+ Mini DSLAM Features

Hardware Features:
	Compact design in nearly one RU Height unit
	Service capacity expansion via units Stacking
	Two 100/1000Base Combo Gigabit Ethernet uplink network interfaces
	24-ADSL2+ ports with built-in POTS Splitter
	Non-blocking switching fabric and wire-speed switching capability
	On board LEDs for system status indications
	Dual power supply modes, DC and AC
	High reliability design
	SELT and DELT Subscriber Loop testing
Software Features :
	Subscriber traffic isolation among ADSL2+ line ports
	Subscriber rate limiting
	Configurable mapping between VLAN tag and ATM PVC RFC 2684 multi-protocol over AAL5, RFC 2516 PPPoE packet forwarding
	IEEE 802.1D spanning tree bridging
	IEEE 802.1Q VLAN tagging, IGMP snooping and GVRP
	IEEE 802.3ad link aggregation on network interface
	Windows based and GUI management system with different user access levels
	Remote system configuration by using Telnet, SNMP v1/v2c management
	In-band management channel
	QoS for IEEE 802.1p priority queues
	OAM F5 fault diagnostic

VX-1000MDz 24 Ports ADSL2+ Mini DSLAM applications

With the ADSL CPE connecting to VX-1000MDz Series, IP packet will be encapsulated and accordance of traffic management with QoS to guarantee the connection quality.

VX-1000MDz Series IP-DSLAM has ability to transparently the protocols from ADSL CPE or end user PC to service applications such as PPPoE (RFC 2516), RFC 2684 Bridge, and L2TP, L2F, PPTP, IP-Sec. tunneling.

The ISP is offering VPN (Virtual Private Network) service to corporations.

The retail business is currently selling only high-speed Internet access to residential consumers but wants to offer some value-add services to the current offerings with the proper device supporting the VPN applications for small-to-medium business.

VX-1000MDz Series transfers their tunnel protocol to upper layer broadband router securely.

Versatek VX-1000MDz 24 Ports ADSL2+ Mini DSLAM Specifications:

Gigabit Ethernet Interface	Two 100/1000Base Combo uplink interfaces (electrical and optical)
	The throughput at least 80,000 packets per second for 1518 bytes packet size both upstream and downstream.
	Cascading connection for multi-system application
Subscriber Line Interface	24-ports ADSL2+ Subscriber line which enables multimedia services.
	Consolidates ADSL, ADSL2 and ADSL2+ connection interface with max. of 25Mbps down stream and 3Mbps up stream
	Loop test supported (SELT/DELT)
	Up to 8 VPC/VCC per ADSL port
	Impulse noise protection
Interface Connection	RS-232 Female DB-9 for Console Management access interface
	2*RJ-45 for FE/GE electrical network uplink
	LC connectors for GE optical network uplink
	1*Telco50 for ADSL Subscriber interface
	1*Telco50 for POTS line Subscriber interface
	2*RJ-45 for Alarm I/O contacts
	In-band Network Management
Standard Compatibility	ITU-T Rec.G.992.1, G.992.2, G.992.3 and G.992.5 with Annex , G.994.1, G.997.1, ANSI T1.413 Issue 2
Application Services	Static IP service at bridge mode: It associates the incoming traffic and tag the VLAN ID to switching into Layer 2 network.
	PPPoE Services: Support PPPoE relay for centralize management of subscribers among different ISPs.
	DHCP Services: Support DHCP option 82 & relay for centralize IP manage under bridged mode
	Video on Demand Services: Supports multicasting with stream channels by enable IGMPv2 snooping function and supports up to 256 multicast groups per set
	VLAN Pass-through Services: Under bridged mode, it allows subscriber deployed their own VLAN ID to associate in the network.
	VPN Pass-through Services: Supports tunneling mechanisms service like IPSec. L2TP, and PPTP for VPN pass-through application under bridged mode
Subtrack / Models	Dimension (W x H x D): 17 x 2 x 12.5 (inches) / 436 x 51 x 320 (mm)
	Weight: 13 lbs / 6 kgs
	19' rack mountable pizza box 1U height
